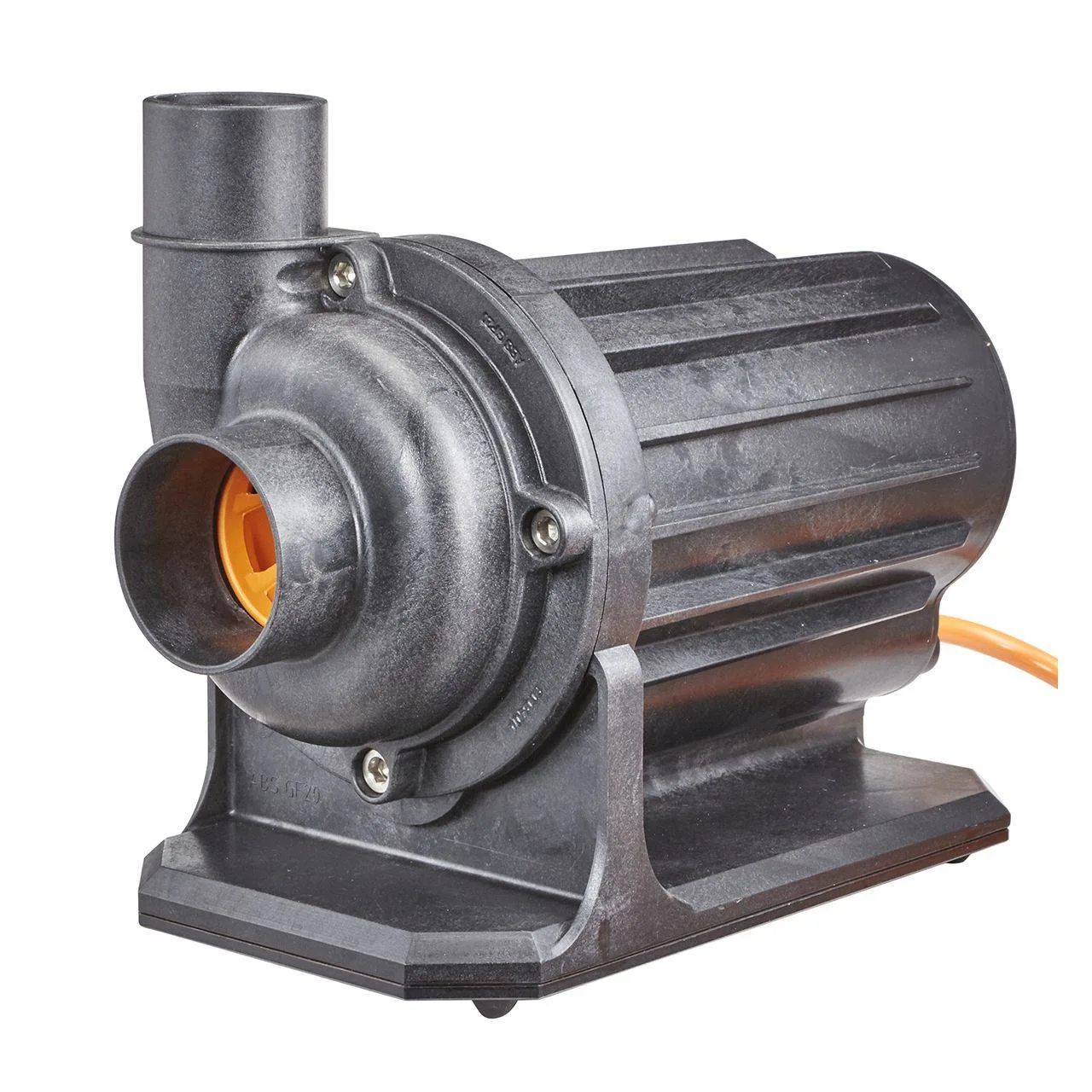

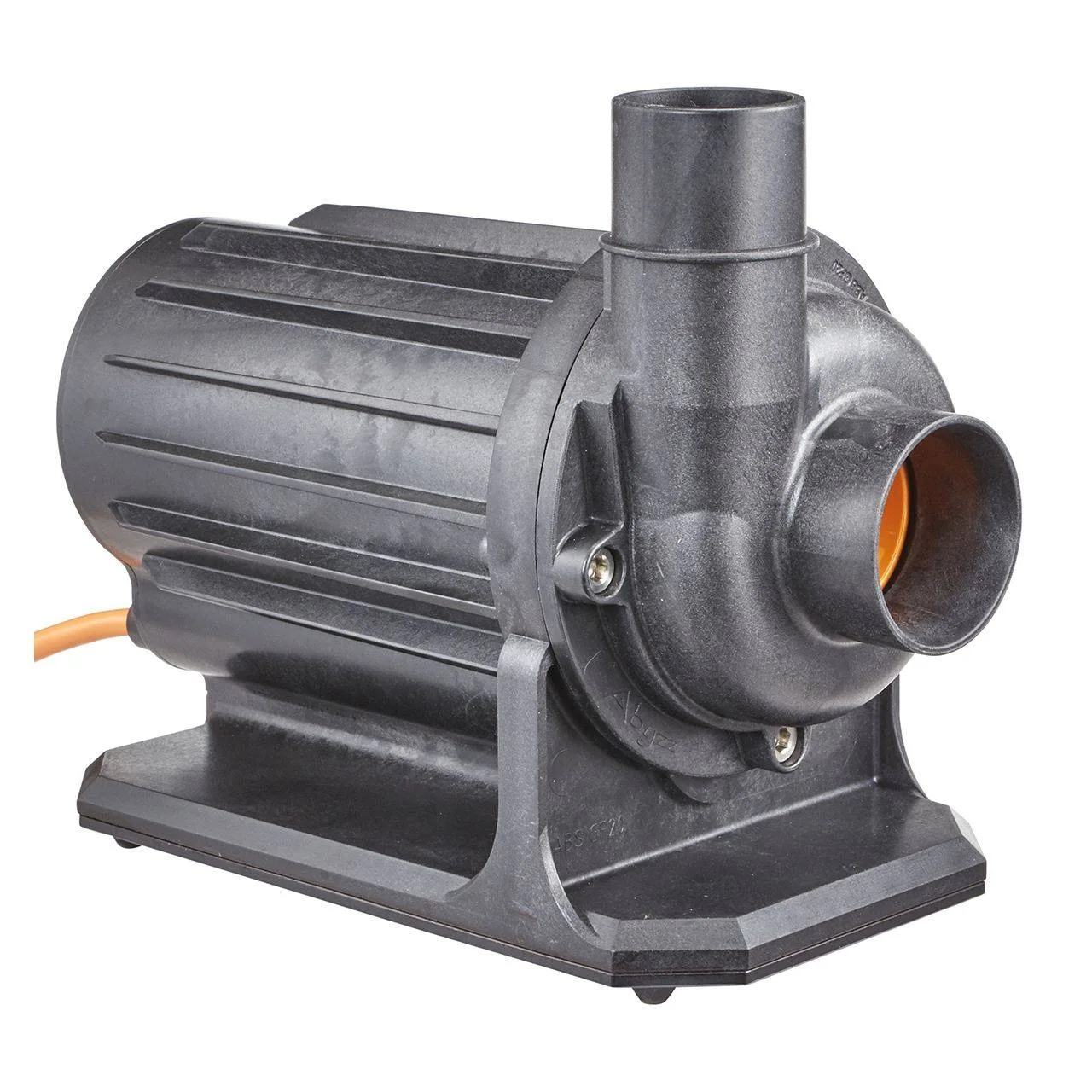

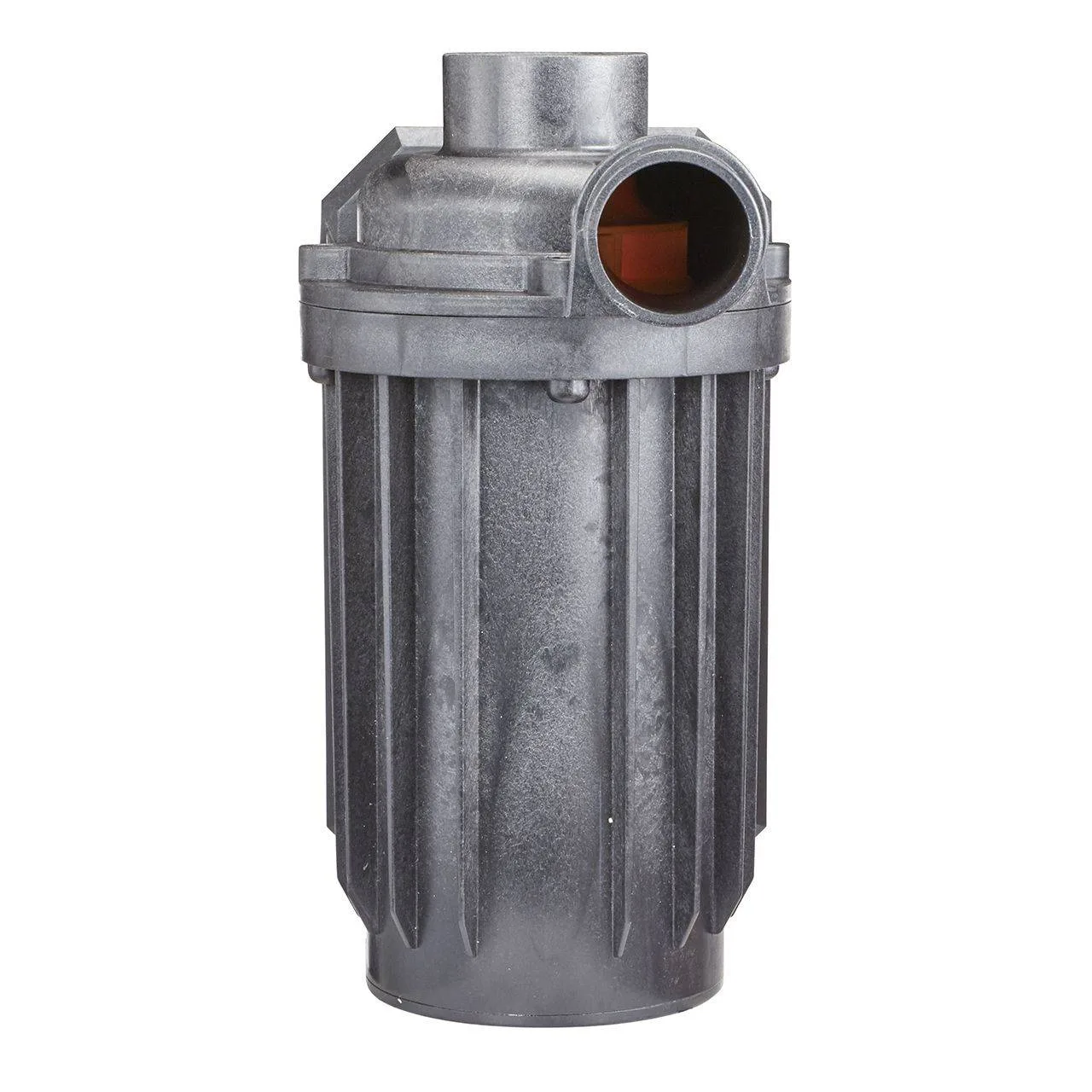

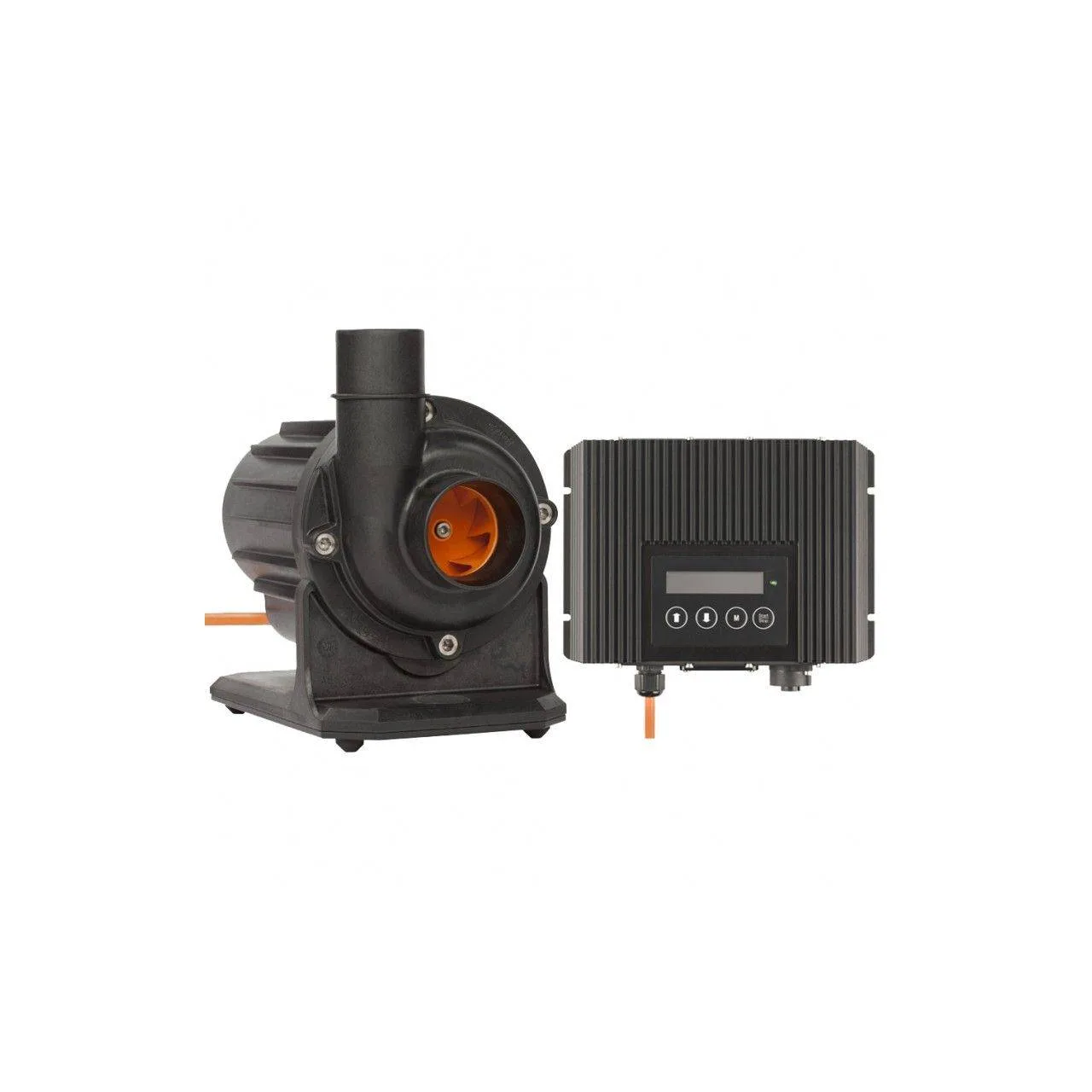

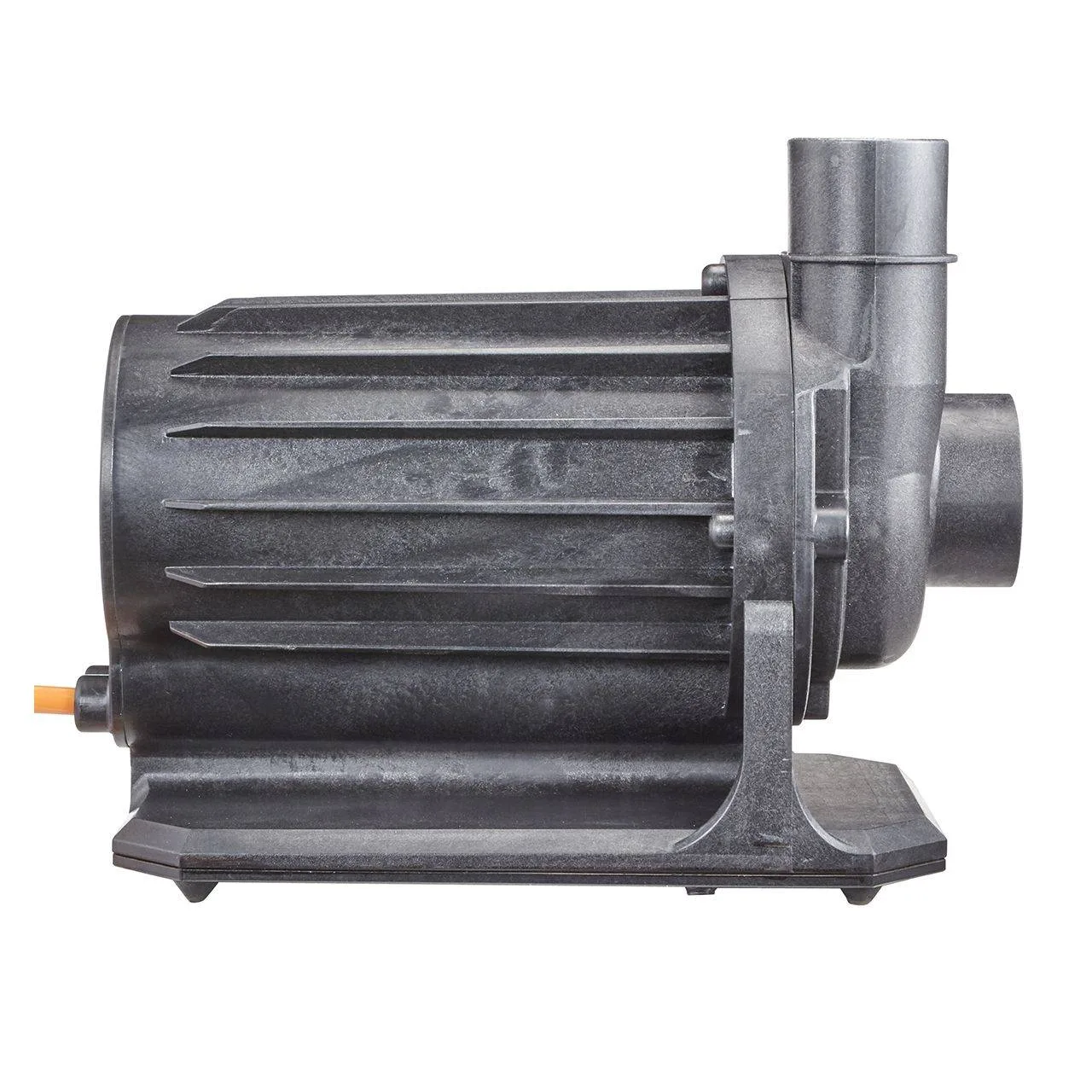

The Abyzz A400 IPU pump has a titanium impeller, a programmable driver, and a sine-wave controlled, three-phase synchronous pump. The efficiency of the motor is more than 90%, which, along with the fact that you can adjust the speed to meet your performance requirements, makes it an energy-saving solution. The integrated bearing flushing provides optimum protection against calcination. In conjunction with the silicon carbide bearings and special hard metal shaft, you are certain to have a very low-maintenance operation. All the materials used are designed to have a long lifetime and meet the highest requirements and quality standards. The Abyzz A400 IPU was developed and manufactured in Germany by Venotec.
- Soft startup
- Precise speed adjustment in steps of 1%
- Wide range input with active power factor correction
- Integrated programming to generate waves, bursts, and random flow patterns with additional BoostMode to override actual programming
- Comprehensive safety functions, such as dry run warning, temperature alert, overcurrent protection, speed zero alerts)
- Auxiliary port for peripheral devices
- Lockable cables and plug connections
- Remarkably low-noise operation

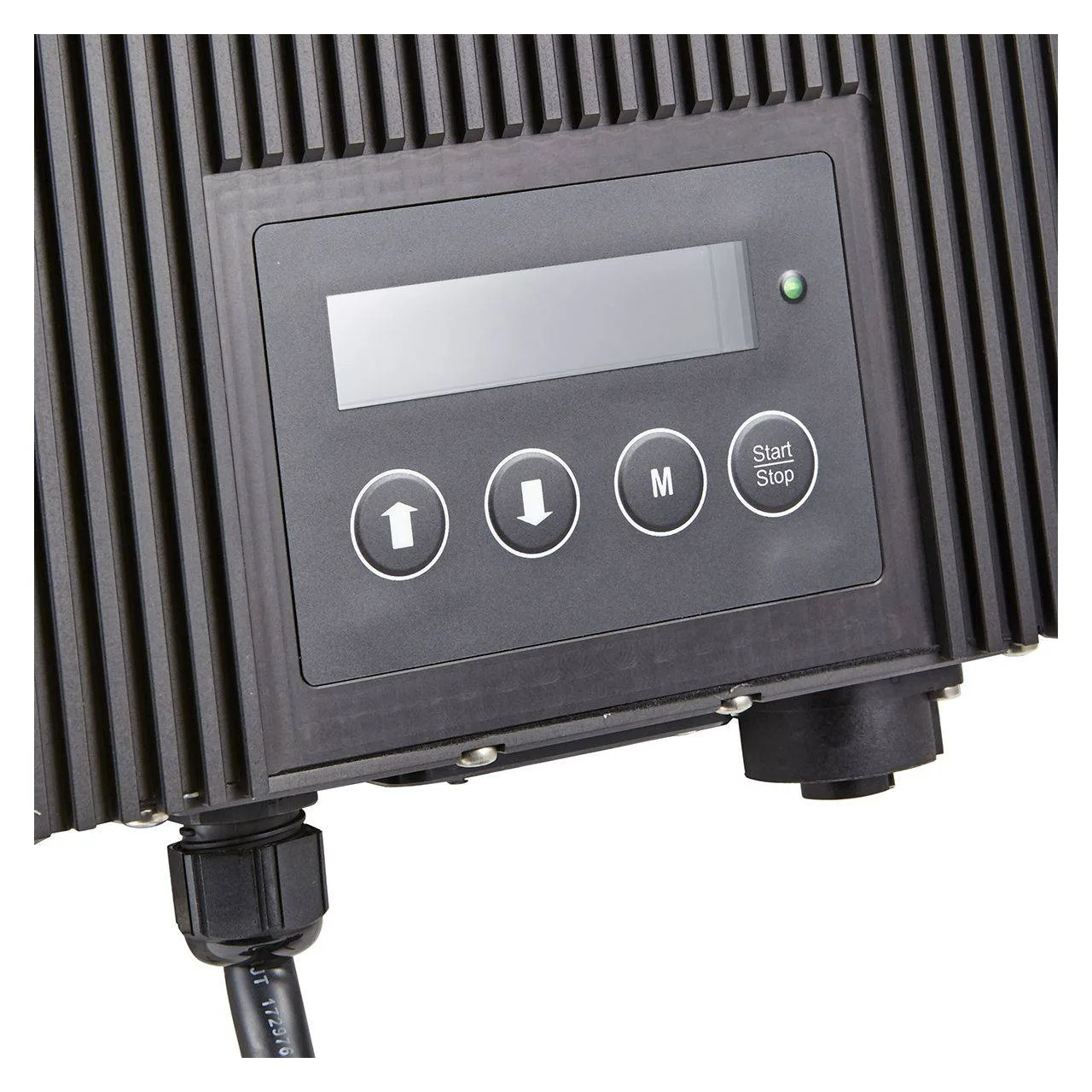

- Multicolor background LCD display
- Splashproof driver (IP65)
- High quality IP65 motor cable connector
Specifications:

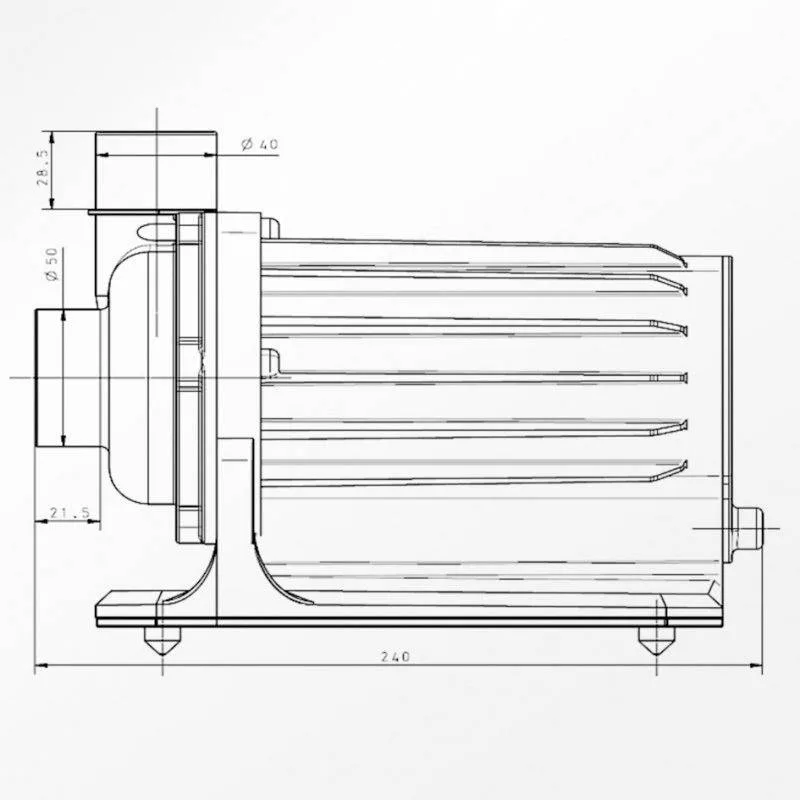

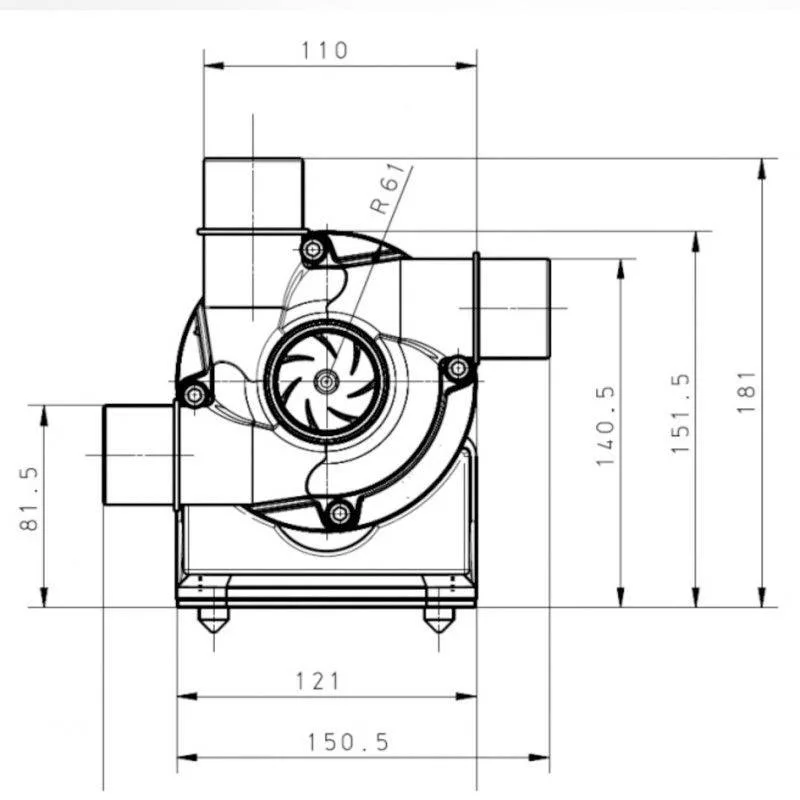

Pump Dimensions – 9.5″ L x 5″ W x 7.2″ H
Max Flow Rate – 6200 GPH (with BoostMode enabled)
Rated Flow Rate – 4900 GPH (with BoostMode disabled)
Max Head Height – 41 Feet
Pump Input Connection – 50mm
Pump Output Connection – 40mm
Pump Speed Control Increments – 1% (1% – 100%)
Max Operating Pressure – 17.4 PSI
Max Pump Immersion Depth – 6.5 Feet

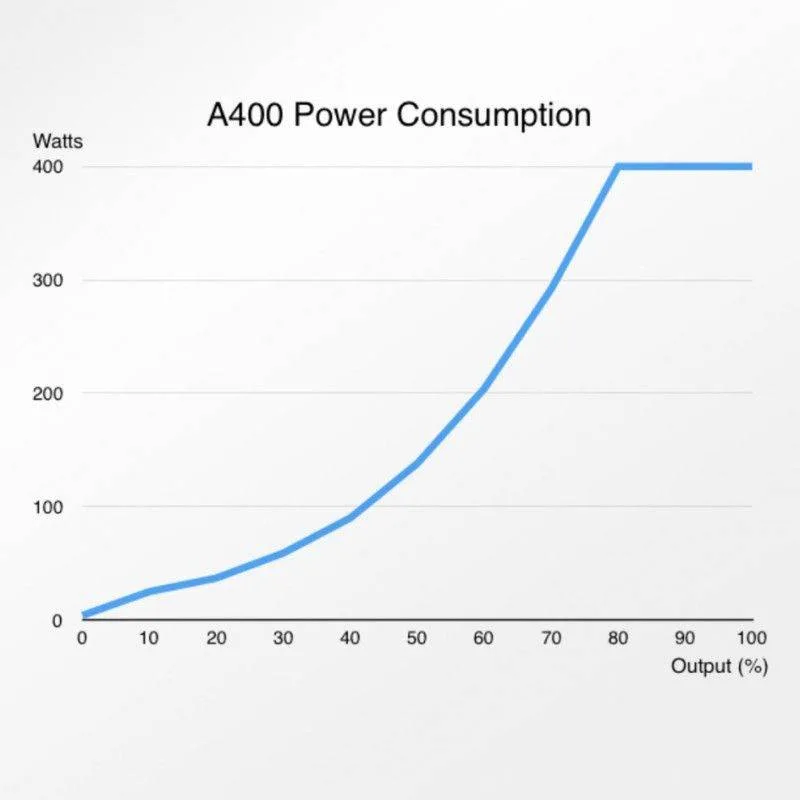

Power Consumption – 4 – 400 watts
Operating Voltage – 100 – 240V
Pump ambient temperature – 34-122°F
Driver ambient temperature – 32-86°F (without additional cooling)
What’s Included?

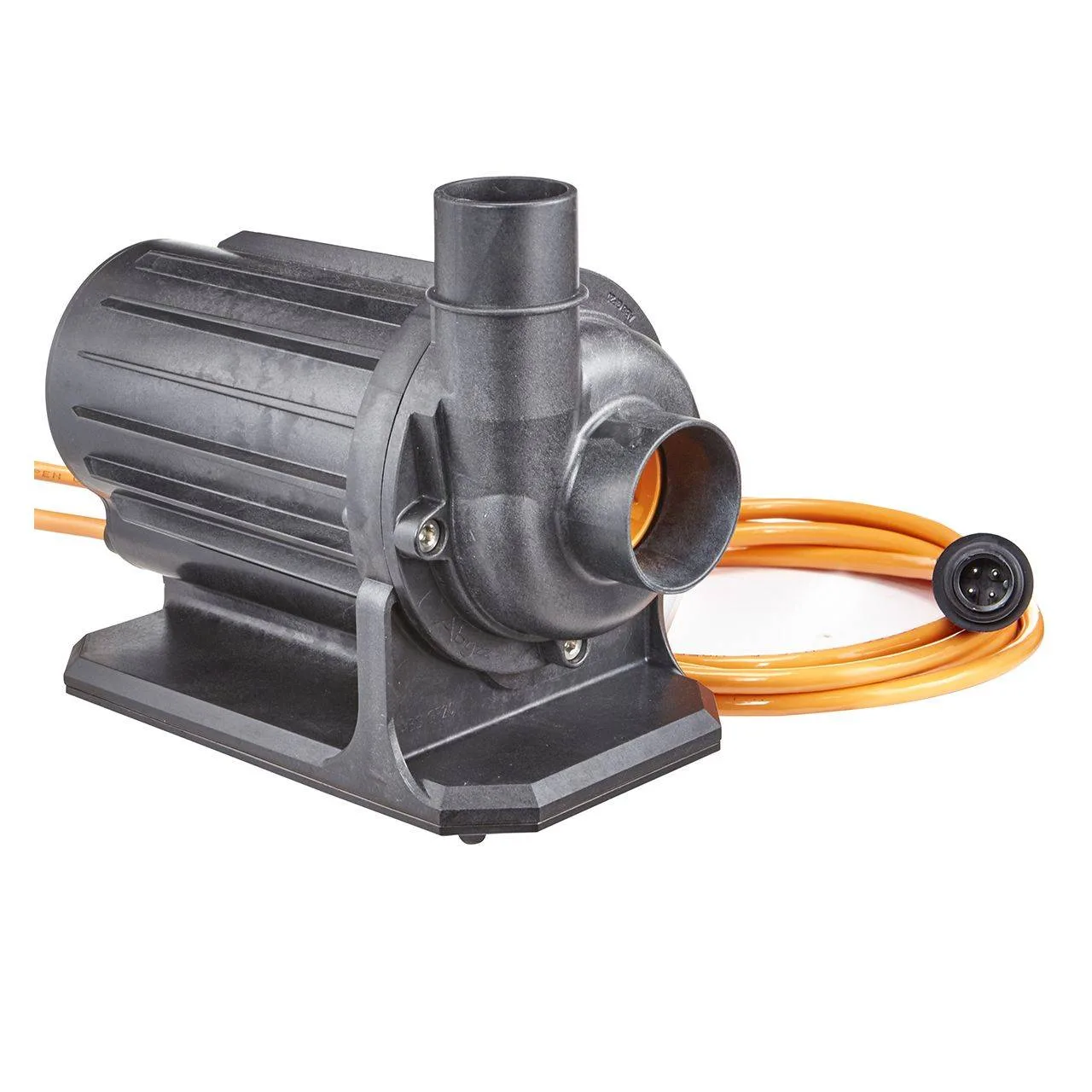

1x Abyzz A400 IPU DC Controllable Pump with Cord

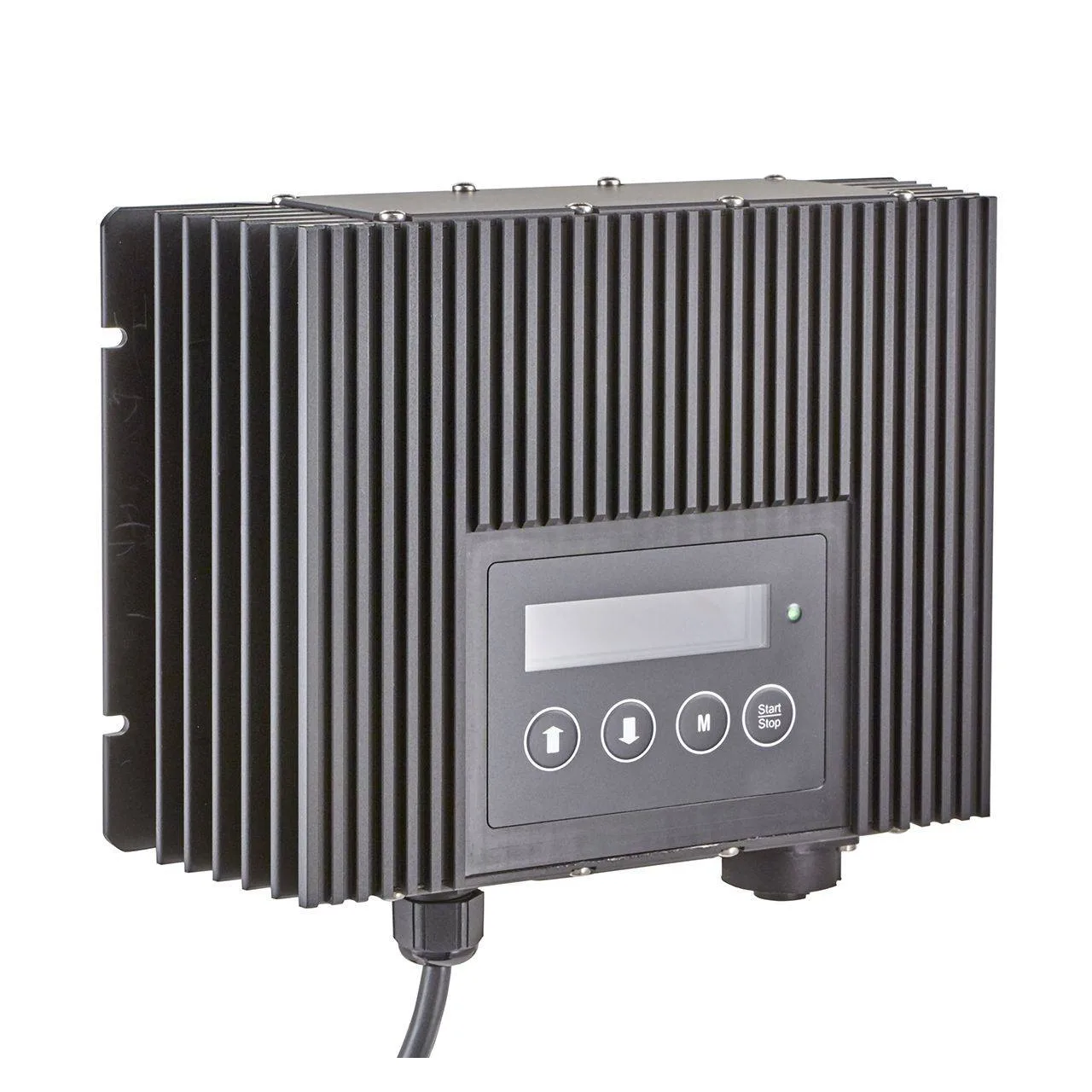

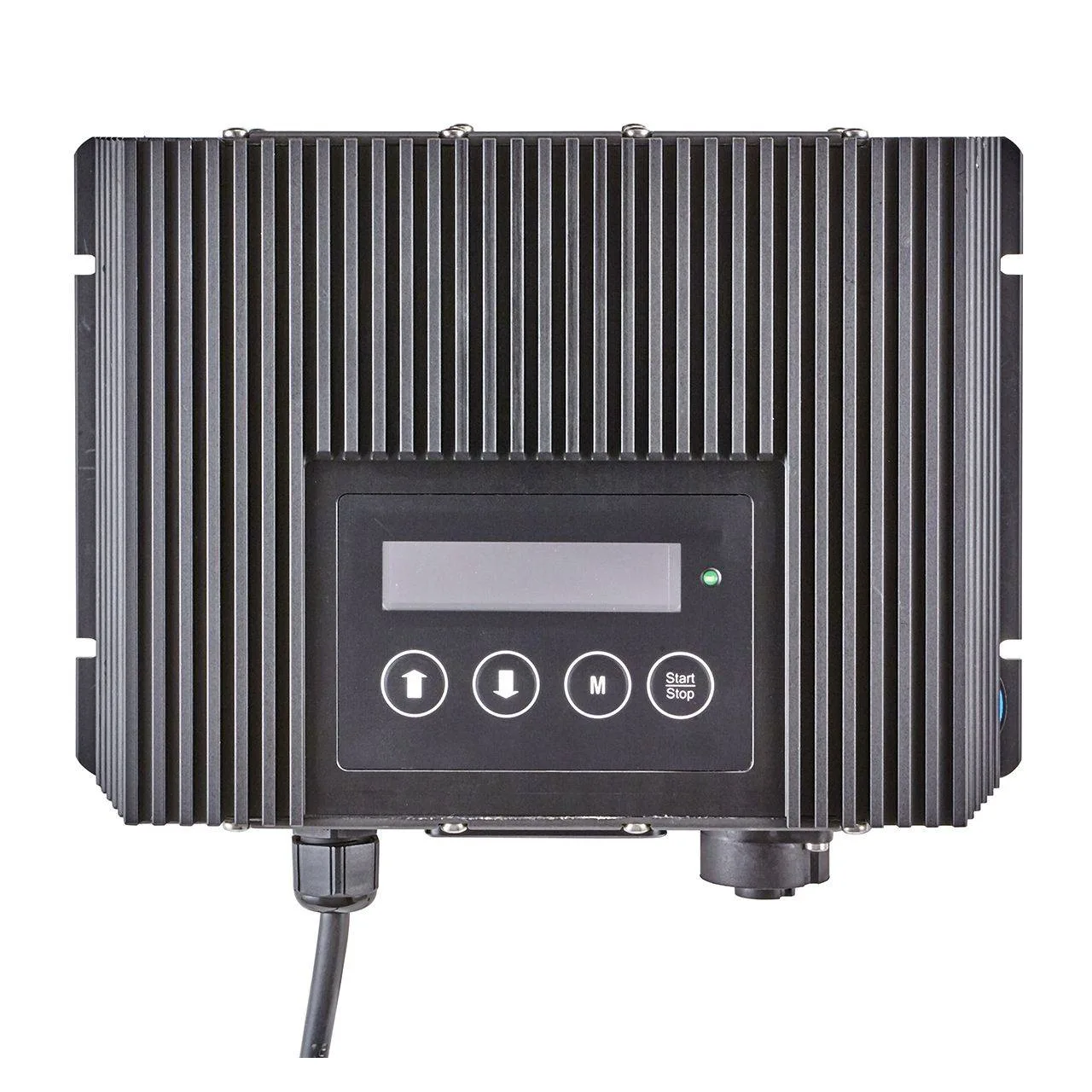

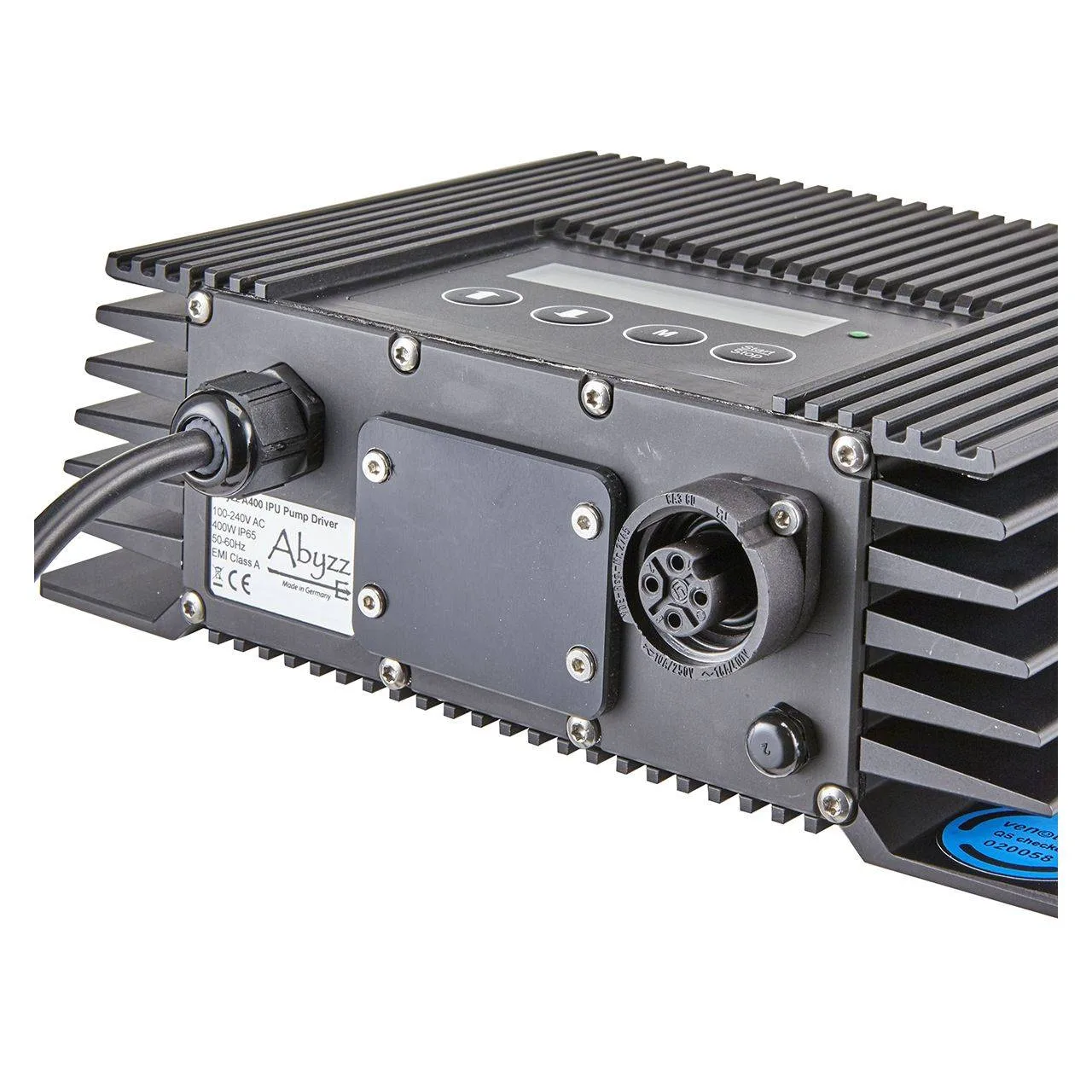

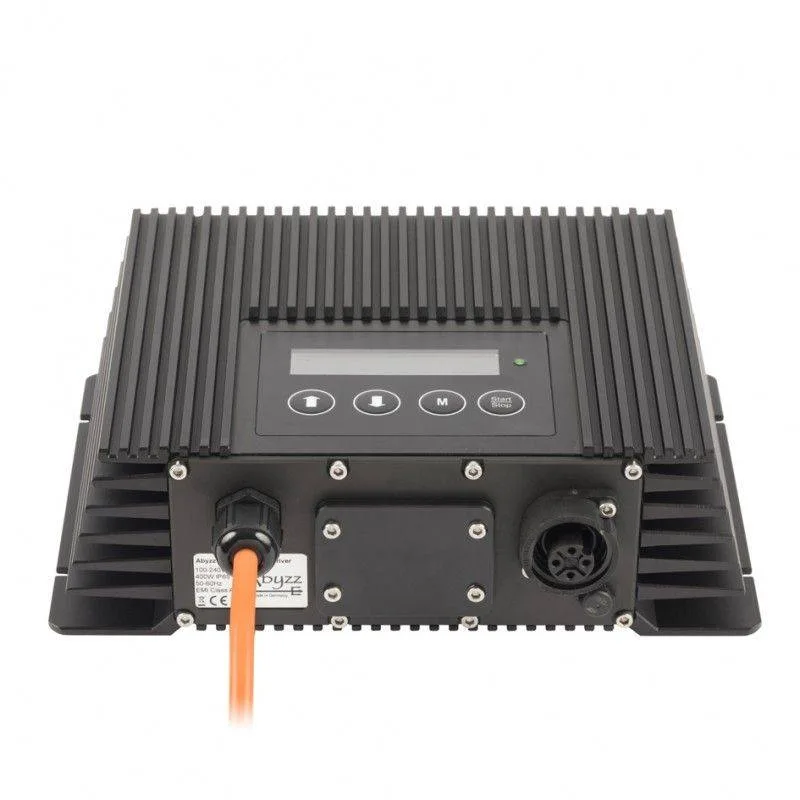

1x Abyzz A400 IPU Controller
1x Power Cord
1x 10-Year Warranty Registration Information
